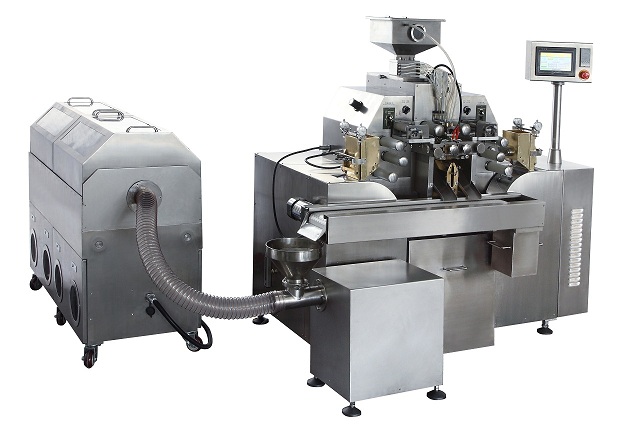

RJWJ-115B Softgel Encapsulation Machine
Product No.: 170010
Product Name: RJWJ-115B Softgel Encapsulation Machine
Structure:
|
RJWJ-115B Softgel Encapsulation Machine |
||
|
Power |
Three-phase five-line 380V 50Hz |
|
|
Total power |
Three-phase five-line 6.5kW |
|
|
Parameter of main motor |
0.75kW 1440r/min |
|
|
Size of the mould |
φ72×110mm |
|
|
Rated rotational speed of mould |
0-4r/min |
|
|
Supplying volume for single-pillar stopper |
0-1ml |
|
|
Loading precision |
±2% |
|
|
Capacity (8# Olive capsule ) |
12750 pcs/h (2.5 r/min) |
|
|
Using rate of glue film (8# Olive capsule) |
72% |
|
|
Methods of supply the glue |
Air pressure supply the glue on ground. |
|
|
Ways of glue cooling |
Water cooling，temperature at about 18℃ |
|
|
Overall dimension |
600×850×1650 mm |
|
|
Weight |
500 kg |
|
|
Main technical parameters of DGZL-400 type tumbler dryer： |
||
|
Rotational number |
2 |
|
|
Size of tumbler dryer |
φ400×640mm |
|
|
Rotational speed |
10r/min |
|
|
Air blower wind amount |
2×1000m3/h |
|
|
Power |
Three-phase and five-line, 380V 50Hz |
|
|
Total power |
Three-phase and five-line 1.4 kW |
|
|
Overall dimension |
1520×580×1130 mm |
|
|
Weight |
100k g |
|
|
Main technical parameters of LS-15 type cooling water machine： |
||
|
Power |
Three-phase and five-line 380V 50Hz |
|
|
Total power |
Three-phase and five-line 2kW |
|
|
Overall dimension |
850×750×1100 mm |
|
|
Weight |
90 kg |
|
|
Main technical parameters of RJBW-180 type water bath style gelatin-melt tank： |
||
|
Effective volume |
180 L |
|
|
Churn ways |
Mixing with gelatin-melt tank with as the center，multilayer mixing blade with drawknife structure |
|
|
Power of main motor |
Three-phase and five-line 50Hz 380V 1.1kW |
|
|
Valve |
All valves are the stainless steel valves |
|
|
Vacuum degree |
0.09Pa |
|
|
Overall dimension |
φ806×1280 mm |
|
|
Weight |
140 kg |
|
